- Floorplan - 2012 Forest River RV Surveyor Sport SP-220
-
Sleeps 4
-
1 Slides
-
Front BedroomRear Bath
-
25ft Long
-
3,804 lbs

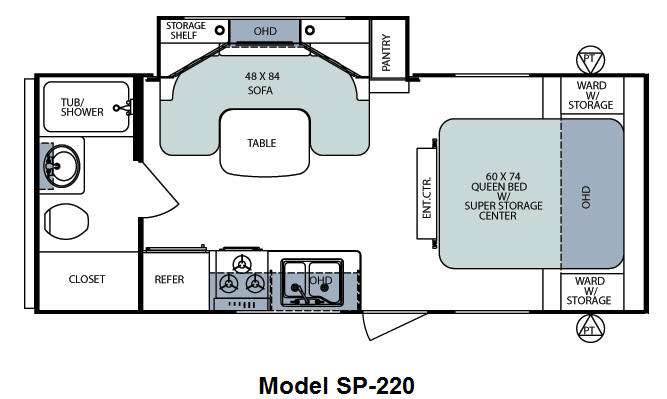

SP-220 Floorplan
Specifications
Sleeps | 4 | Slides | 1 |
Length | 24 ft 8 in | Ext Width | 8 ft |
Ext Height | 8 ft 10 in | Hitch Weight | 425 lbs |
GVWR | 7425 lbs | Dry Weight | 3804 lbs |
Cargo Capacity | 3252 lbs | Fresh Water Capacity | 36 gals |
Grey Water Capacity | 30 gals | Black Water Capacity | 30 gals |
Furnace BTU | 20000 btu | VIN | 4X4TSVX26C2471536 |
Description
Single Slide Surveyor Sport Travel Trailer, Rear Bath w/Tub/Shower, Lav., Toilet, Closet, Refrigerator, 3-Burner Range, Double Kitchen Sink, Entertainment Center, Queen Bed w/Super Storage, Dbl. Wardrobes w/Storage, Pantry/Sofa w/Table Slide, Overhead Cabinets Throughout & Much More.
Features
Standard Features (2012)
Appliances & Equipment
- Dometic, G/E Flush-Mount Refrigerator
- Power Range Hood w/Light
- Six Gallon Gas/Electric DSI Water Heater w/Quick Recovery
- Three Burner Range Top
- Gas Oven with Piezo Ignition
- Microwave Oven
- 20,000 BTU Furnace (Ducted 23'-26')
- 30,000 BTU Ducted Furnace (27' and Above)
- 13.5K Air Conditioning (Ducted 25' and Above) (All models in West Region)
- Digital Wall Thermostat
- Stereo CD/DVD with MP3/SD Card/USB Ports and Remote Control
Bath
- Fiberglass Tub/Shower
- Adjustable Shower Head/Faucet
- Lavatory Sink and Faucet
- Wood Medicine Cabinet w/Mirror
- Shower Curtain with Tieback
- Thetford Commode with Foot Flush
- Skylight in Tub/Shower
- Monitor Panel
Construction
- Fully Laminated Aluminum Construction
- Full Walk on Roof
- Radius Roof w/Aluminum Trusses 16" on Center
- 3/8" Decking
- 1-1/2" Laminated Sidewall (R7)
- 2" Laminated Floor (R9)
- Electric Powered Slide-Out Mechanism w/Manual Override
Electrical
- Detachable 28', 30 amp Power Cord
- 55 amp Converter w/Charger
- Exterior 120 volt Recept
- Patio Light with Amber Lens
- Hitch Light
- Pass-Thru Storage Light
- 12 volt Interior Lighting
- 120 volt GFI Protected Safety Circuit
- Cable & Satellite Ready
Expandable Beds
- Attached Vinyl Weathershield Tent(s)
- Automotive Rubber Gasket and Compression Latches
- Decorative Bunk Cushions
- Radius Door w/Hinge
- 1,000# Capacity
Safety
- Break-Away Switch
- Fire Extinguisher
- LP Detector
- Smoke Detector
- Ground Fault Protected Electrical Circuit(s)
- Dead-Bolt Door Lock
- Safety Chains
- Carbon Monoxide Detector
- Tinted Safety Glass
Exterior
- Super Flex Roof w/12 Year Warranty
- Lamilux Super 1000 Fiberglass Skin w/2 Year Warranty
- Radius Corner Windows
- Flush Mount Outside Storage Compartment(s) w/Rubber D-Seal
- Self-Storing Double Entrance Step(s)
- Butyl Tape Sealant on Seams
- Combination Entrance/Screen Door w/Dead-Bolt Lock
- Flush Mount Outside Storage Compartment(s) w/Rubber D-Seal
- Designer Exterior Graphics
- 30# LP tanks w/Molded Cover
- Enclosed Underbelly
- Drip Rail and Down Spout
- Electric Awning w/Adjustable Rain Dump
- Heavy Duty Scissor Jacks
- Windstar TV Antenna
- Dual Battery Rack
- 4" Square Bumper w/Sewer Hose Storage
- Outside Shower
- Spare Tire w/Carrier and Cover
- Deep Double-Bowl Kitchen Sink w/High Rise Faucet
- Knife Block Behind Stove
- Panoramic Galley Window
- Valances with Mini-Blinds
- Designer Carefree Flooring
- Solid Lumber Core Cabinet Fronts Assembled w/Screws
- Residential Style Cabinet Doors w/Concealed Hinges
- Reversible Dinette Cushions
- Power Range hood with Light
- Residential Style Wood Drawers w/Metal Glides
- 78" Interior height
- 80 lb. Gas Bed Struts (Queen Bed)
- Adjustable Shelves in Pantry (Where Applicable)
- E-Z Glide Dinette Table
- Ceiling Light Switch at Entrance Door
- Screwed & Glued Cabinetry
- Shaw r2x Stain and Soil Resistant Carpet
- Black Tank Flush
- Color-Coded Water Lines
- Copper Gas/Lines, Double Flared
- Rotocast Holding Tanks, Underfloor
- Rotocast Fresh Water Tank, Underfloor
- Demand Waterpump, 12-volt
- City Water Fill
- Gravity Water Fill
- Water Heater Bypass Kit
- Winterization Kit
Running Gear
- Super Lube Hubs
- Galvanized Steel Wheel Wells
- Leaf Spring Axles(s)
- Radial Trailer Tires
- Nev-R-Adjust Electric Brakes All Wheels
- Tough, Powder Coated Frame
- 2-5/16" Coupler
- 205/75/R14C Tires (select models)
- 225/75/R15D Tires (select models)
- 15K Air Conditioner IPO 13.5 BTU A/C
- Serta "Dreamscape" Mattress (Standard on Select models)
- Day/Nite shades
- Roof Ladder (N/A SP-192T, SP-224T, SV-235RKS)
- Outside Gas Grill (Standard on SP-240, SP-295, SV-305)
- Raised-Panel Refer Door Inserts
- Power Tongue Jacks
- Axle Risers (N/A SV-300, SV-301, SV-302, SV-303, SV-304, SV-305, all Sport models)
- Slide-Out Awning Topper
- Booth Dinette w/Hide-A-Bed sofa IPO "Vista Lounge" (N/A Sport models)
- Aluminum Split Spoke Wheels
- Outside Stereo Speakers
- Exterior Assist Handle
- LCD Flat Screen TV
- Ball Bearing Drawer Glides
- Hitch Light
- Extended Down Spouts
- Illuminated Pass-Thru Storage Compartment
- Fully Enclosed Underbelly
- Raised Panel Cabinet Doors w/Residential Hinges
- AM/FM/CD/DVD Stereo System w/Remote Control
- 3-Burner Cooktop w/Oven
- Microwave
- Skylight Over Tub/Shower
- Tub Surround
- Decorative Wall Paper Border
- Double Door Refrigerator
- E-Z Glide Dinette Table
- Electric Awning
- 30 lb. LP Bottles w/Cover
- Spare Tire/Carrier and Cover
- Stabilizer Jacks
- TV Antenna w/Cable/Satellite Hook-Up
- Detachable 30-amp Power Cord
- Alum-Cage Construction
- 13.5 BTU Air Conditioner
- Double Entry Step
- Tinted Safety Windows
- Lamilux 1000 Gel-Coated Fiberglass
- Black Tank Flush
