Floorplan - 2017 Grand Design Reflection 30BH
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

-
Sleeps 6
-
3 Slides
-
BunkhouseFront Bedroom
-
33ft Long
-
9,105 lbs

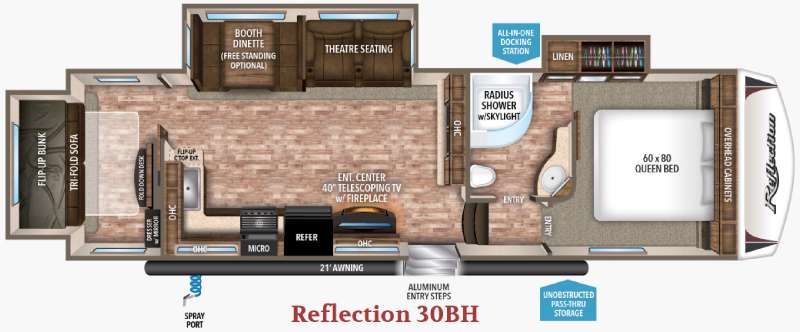

30BH Floorplan
Specifications
Sleeps | 6 | Slides | 3 |
Length | 33 ft 5 in | Ext Height | 12 ft |
Hitch Weight | 1625 lbs | GVWR | 11995 lbs |
Dry Weight | 9105 lbs | Fresh Water Capacity | 60 gals |
Grey Water Capacity | 86 gals | Black Water Capacity | 43 gals |
Furnace BTU | 40000 btu | VIN | 573FR3425H3309592 |
Description
Step inside and find an open concept kitchen and dining space. There is a counter area straight in the door along the interior wall with overhead cabinets for storage. Opposite the door side find seating with a slide out theater seat for two, and a booth dinette. You can choose to add a free standing dinette IPO the booth dinette if you like.
To the left of the entry door enjoy the 40" telescoping TV with entertainment center and fireplace. This same side features the kitchen which continues along the curb side wall. Here you will easily be able to cook for your family with the amenities provided. There is a refrigerator, a three burner range with overhead microwave oven, and a large sink for cleaning up along the interior wall. You will find plenty of storage with overhead cabinets, and lower cupboards and drawer space too. There is even a counter extension on the end of the L-shaped counter next to the sink when needed.
In the very rear of this unit you will find a private bunkhouse with a sliding pocket door. Here you will find a rear slide out flip-up bunk above a tri-fold sofa. There is also a fold down desk and dresser with mirror along the interior wall.
Back through to the main door head up the steps to a side aisle bath and front master suite. The bath on your left offers a radius shower with skylight, toilet, and a vanity with sink. The sliding pocket door in the bathroom allows you access to the master bedroom and puts the linen closet section of the bedroom slide within the bath when extended.
In the front bedroom relax and rest up for a new day on the queen size bed provided. There are overhead cabinets above the head of the bed, and storage on either side as well. The slide out wardrobes and linen cabinet create more walking around space inside.
You are sure to enjoy the exterior unobstructed pass-thru storage and all-in-one docking station, plus so much more!
Features
Standard Features (2017)
Exterior
- Aerodynamic Front Cap with Max Turn Radius
- Marine Grade LED Hitch Light (FW)
- LED "Night Lights" Under Bedroom Slide (FW)
- EQUA-FLEX Rubberized Suspension (FW)
- Aluminum Wheels with E-Rated Tires
- 80% Tint Radius Safety Glass Windows
- Battery Kill Switch in Pass Thru Storage Area
- Extended Pin Box (FW)
- 30# LP Bottles (2)
- 30" Radius Entry Door
- Outside Speakers
- Outside Shower
- Factory Installed Roof Ladder
- Under Carriage Spare Tire and Carrier
- High-Capacity Water Pump with Interior and Exterior Switch
- Extra Large 1 1/2" Fresh Water Drain Valve
Interior
- Hand Rubbed Maple Cabinet Doors
- Solid Hardwood Drawer Fronts
- Louvered Tread Steps to Bedroom (FW)
- Solid Core Cabinet Stiles
- Pre-drilled and Screwed Cabinetry
- Ball Bearing Full Extension Drawer Glides
- Tri-Fold Hide-A-Bed Sofa (Model Specific)
- Deep Overhead Cabinets in Slide Out
- Large Panoramic Slide Room Windows
- Premium Beauflor Flooring with 7-year Warranty
- Ductless Flooring Throughout Living Area
- Residential Style Window Treatment
- LED Lighting Throughout with Motion Sensors (Key Areas)
Kitchen
- Gunstock Fixtures and Hardware
- Deep, Undermount Kitchen Sink
- Hardwood Galley Slide Trim Moldings & End Caps
Bathroom
- Neo-Radius Shower Doors (N/A on Bedslides)
- Wide View Skylight Over Shower
- Heat Duct and A/C Vents in Bathroom
- Custom Designed Shower Pan and Surround
- Power Vent Fan
- Extra Large Lav Top with Acrylic Sink
- Large Medicine Cabinet with Mirror
Bedroom
- King Size Wardrobe
- Pillowtop Mattress
- Oversized Underbed Storage
- Residential Bedspread
- Bedroom Heat Registers
- Closeable A/C Vents
- TV and Cable Prep
Construction
- Gel Coated Tan Fiberglass Exterior
- Residential 5" Truss Rafters (16" O.C.)
- Walk On Roof Decking
- Fiberglass and Radiant Foil Roof and Front Cap Insulation
- One-Piece TPO Roof Membrane with 12-Year Warranty
- Easy Access Low Point Drain Valves
- Laminated Aluminum Framed Rear Wall (R-9)
- Laminated Aluminum Framed Side Walls (R-9)
- Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-9)
- Aluminum Framed Main Floor (R-30*)
- Residential Wood Framed Roof (R-40*)
- Aerodynamic Front Cap with Max Turn Radius
- Laminated Aluminum Framed Rear Wall (R-9)
Ultimate Power Package (Mandatory)
- One-Touch Electric Awning with LED Light
- Power Stabilizer Jacks
- HDMI/AM/FM/CD/DVD Bluetooth Stereo System
- High Definition LED Television (Living Area)
- 50 AMP Electrical Service
- Wired and Framed for 2nd A/C in Bedroom
- Detachable Power Cord with LED Light
- Power Rear Stabilizer Jacks
- 30" Convection Microwave Oven
- 15k BTU Ducted A/C
- Maxx Air Fan w/Rain Sensor
Peace of Mind Package (Mandatory)
- Residential Cabinetry
- Solid Surface Countertops
- Aluminum "Tread Lite" Entry Steps
- Metal Slam Baggage Doors with Magna Latch
- 8 Cu.Ft. Double Door Refrigerator w/ Ext. Thermostat Control
- 17.8 Gal./Hr. Quick Recovery Water Heater
- Porcelain Toilet with Foot Pedal Flush
- Residential Single Lever Faucet with Pullout Sprayer
- Universal All-In-One Docking Station
- Black Tank Flush
- Radius Fireplace
- Solid Surface Sink Covers
- Heated Wall Hugger Theatre Seats w/ LED Lights (NA 28BH)
- Residential Booth Dinette
- LP Quick Connect
- Self Adjusting Brakes
Arctic 4-Seasons Protection Package (Mandatory)
- 35k BTU High Capacity Furnace
- Thermofoil Wrapped Frame and Subfloor (Beneath Main Holding Tanks)
- Heated and Enclosed Underbelly w/Circulating Heat
- Ducted Heat to Pass Thru Storage Area (FW)
- Heated and Enclosed Dump Valves
- EZ Winterization Valve in Utility Center
- Insulated Slide-out Floors
- Attic Vent
- Double Insulated Roof and Front Cap
- Zero Degree Extended Season Enjoyment
Options
- 2nd A/C Low Profile 13.5k BTU Ducted (FW)
- 2nd A/C 15k BTU Ducted (TT)
- One Touch Auto Leveling (Mandatory) (FW)
- Free Standing Table and 4 Chairs (2 folding) (NA 28BH - Forced on 26RL)
- 2” Receiver Hitch (Mandatory)
- Dual Pane Windows
- 12 cu. ft. Refrigerator (28BH, 307MKS, 311BHS, 312BHTS, 315RLTS, 337RLS, 367BHS)
- Tri-Fold Sofa IPO Theatre Seating (Forced on 28BH)
- King Bed (315RLTS, 337RLS, 367BHS)
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
