- Floorplan - 2017 Heartland ElkRidge Xtreme Light E292
-
Sleeps 4
-
3 Slides
-
Rear Living AreaKitchen Island
-
33ft Long
-
8,723 lbs

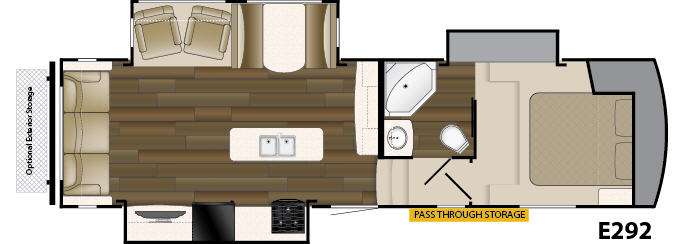

E292 Floorplan
Specifications
Sleeps | 4 | Slides | 3 |
Length | 32 ft 7 in | Ext Width | 8 ft |
Ext Height | 11 ft 10 in | Hitch Weight | 1685 lbs |
GVWR | 10500 lbs | Dry Weight | 8723 lbs |
Fresh Water Capacity | 47 gals | Grey Water Capacity | 40 gals |
Black Water Capacity | 40 gals | Tire Size | ST225/75R15D |
VIN | 5SFRG3326HE332151 |
Description
Step inside and be amazed at the space you find. There are dual opposing slides in the main living area with a slide out kitchen including a three burner range and refrigerator to the left of the door, along with an entertainment center featuring a space for a flat screen TV and storage both above and below. A nearby island features added counter prep space and a double sink. There is also a buffet along the interior wall which provides adequate space for dishes and things, plus more counter space too.
Straight ahead from the entry enjoy seating at the booth dinette during meals, as well as a couple of lounge chairs for relaxing and hanging out. There is a sofa across the rear wall with storage cabinets the entire width of the unit making it very easy to keep things neat and tidy.
To the right of the main entry door head up the steps to a front master bedroom and side aisle bath. The bedroom offers a relaxing space with a slide out wardrobe which allows for more walking around space inside. There is a wardrobe on the left side of the bed, a nightstand on the right, and overhead cabinets above, plus a little shelf for your things beneath the storage cabinets.
The side aisle bath accessible from the hall also has a second entry door that leads into the master. In the bathroom find an angled shower, toilet, and sink. There is also easy access to the slide out wardrobe/storage closet where you can also keep your linens and towels.
You might enjoy the added storage you can choose with an optional rear storage compartment, plus so much more!
Features
- Laminated fiberglass sidewall
- Double-welded aircraft quality aluminum structure
- Multi-layer with block foam insulation
- R11 insulation
- Deluxe power exterior awning with LED light
Roof Construction
- 5” attic trusses for extra strength
- One-piece walkable EPDM rubber roof
- R14 insulation
Frame/Floor/Underbelly
- 10” I-beam powder coated steel
- 3/8” Seamless deck floor
- Seamless corrugated and underbelly material
- Heated and enclosed underbelly
- Flex foil insulation (R-14)
- 16” Tires with aluminum rims and leaf springs
- Spare tire and carrier
- MorRyde 3000 suspension
- 2” x 12” Nev-R-Adjust brakes by Dexter
- 6,700 lb. Dexter axles with E-Z Lube hubs
Exterior
- Painted aerodynamic style fiberglass front cap with LED lights
- Tight Turn Technology front cap
- Large exterior storage fully lined with entertainment prep
- Insulated slam style cargo doors with magnetic hold backs
- Hydraulic front landing gear
- Electric rear stabilizer jacks
- Tinted safety glass windows with UV protection
- Exterior speakers
- Light at entry step
- Extended hitch pin
- Large entry assist grab handle
- Rear ladder
- Aluminum tread entry step
- Universal Docking Center (U.D.C.) all system hook-ups in one convenient and concealed compartment
- - Black tank flush system
- - City water hook up with high pressure fresh tank fill
- - Exterior shower with hot & cold water
- - Satellite and antenna connections
- - All tank pull handles
- - Winterization valves
Interior/Kitchen
- LED lighting throughout
- Glazed cabinets with spring loaded hidden hinges
- Full extension steel ball-bearing drawer guides
- LG Solid surface countertop
- 13 cu. ft. residential stainless steel refrigerator
- Deep stainless steel kitchen sink Recessed three burner cook top with oven
- Residential microwave oven
- Free standing dinette with four chairs
- Cold crack resistant flooring
Living Room
- Night shades throughout
- Decorative glass inserts in overheads
- Ceiling fan
- Two rocker recliners (select models)
- Flip and fold sleeping sofa (most models)
Bedroom
- Bedroom slide out with under bed storage
- Walk-in wardrobe
- Stackable washer dryer closet
- 6’-4” Bedroom ceiling height
- Reading lights over the bed
Bath Area
- Porcelain commode with foot flush
- Power roof vent
- Heat and A/C duct
- Spacious medicine cabinet
- Large lavatory sink
Safety
- Smoke detectors
- Fire extinguisher
- LP gas & CO2 detector inside unit
- Break away switch
- All safety glass windows
- 120V GFI protected outlets
- Emergency egress windows
- 12 gallon water heater
Options
- Exterior Storage
- Sink Covers
- HDTV with DVD player
- 15,000 BTU A/C upgrade
ElkRidge XL Package
- 2” laminated sidewalls
- Heated and enclosed underbelly
- Universal Docking Station
- Dexter axles
- Aluminum rims
- Spare tire
- Tinted safety glass windows
- Electric power awning with LED light strip
- 13,500 BTU ducted A/C
- Glazed cabinets with hidden hinges
- Full extension ball-bearing drawer glides
- Cloth night shades
- Porcelain commode with foot flush
- Cable TV with satellite hookup
- TV antenna with signal booster
- AM/FM Stereo with CD DVD and USB hookup
- Exterior speakers
- Large refrigerator
- Microwave
- Gas oven with range
- Stainless steel hardware
- Cold crack resistant interior flooring
- Gas/electric DSI water heater with bypass
- Twin 30# LP tanks
- Detachable power cord
- Black tank flush
- Outside shower
- Aluminum tread entry step and large assist grab handle
ElkRidge Xtreme Package
- Exterior high gloss sidewall
- Painted front cap with Tight Turn Technology
- Power front landing
- Correct track alignment system
- LED interior lights
- 2nd A/C wire and prep (most models)
- Push back recliners
- E-Rated tires
- 50 Amp service
