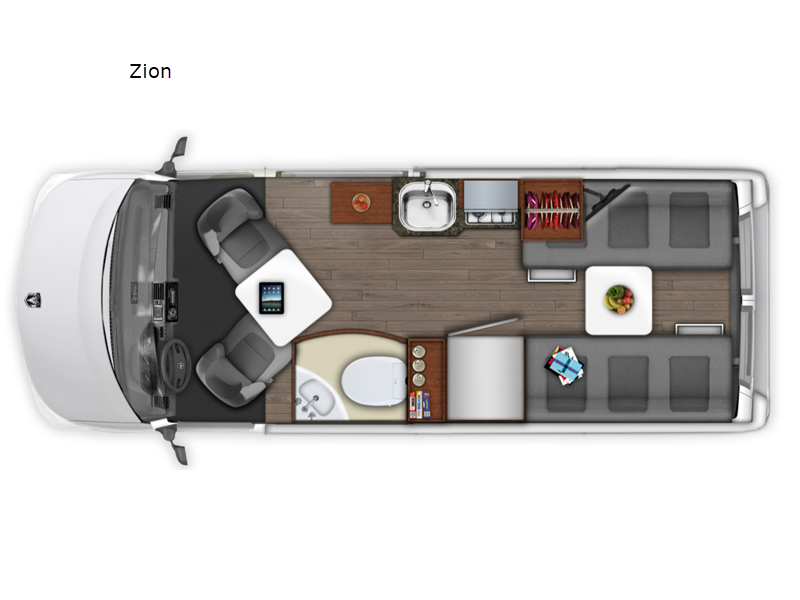

Zion Floorplan
Specifications
Sleeps | 3 | Length | 20 ft 9 in |
Ext Width | 6 ft 11 in | Ext Height | 9 ft 5 in |
Int Height | 6 ft 2 in | Hitch Weight | 2000 lbs |
GVWR | 9350 lbs | Cargo Capacity | 1250 lbs |
Fresh Water Capacity | 37 gals | Grey Water Capacity | 14 gals |
Black Water Capacity | 8.5 gals | Tire Size | LT225/75R16E |
Furnace BTU | 16000 btu | Fuel Type | Gasoline |
Miles | 13569 | Engine | 3.6L V6 |
Chassis | Ram ProMaster 3500 Extended Van | Horsepower | 280 hp |
Wheelbase | 159 in | Torque | 260 ft-lb |
Refrigerator Type | 12V | Refrigerator Size | 5 cu ft |
Cooktop Burners | 2 | Number of Awnings | 1 |
Axle Weight Front | 3500 lbs | LP Tank Capacity | 5.9 gals |
Water Heater Type | Instant | AC BTU | 11000 btu |
TV Info | Coach 24" Smart TV | Awning Info | 13' Power |
Gross Combined Weight | 10600 lbs | Shower Type | Wet/Bath Shower |
Electrical Service | 30 amp | VIN | 3C6MRVJG0ME511647 |
Description
Roadtrek Class B gas motorhome Zion highlights:
- 13' Retractable Power Awning
- Exterior Shower
- Convertible Power Sofas
- Automatic Propane Heating System
- Wet Bath
- 5.0 Cu. Ft. Refrigerator
Whether you need more space for your bicycles, gear, or luggage, you will love the open concept layout of the Zion coach. Each morning you can prepare breakfast on the two burner propane stove, or use the convenient microwave oven. Head out to find a trail or two, and the wet bath will be waiting for you when you return. The countertop extension with a charging station will provide a place to download your pictures from your hike, and there is a slide-out pantry to grab a snack to hold you over until dinner. The side facing rear power sofas easily convert to twin beds or a queen-size bed for your comfort.
The Roadtrek Class B gas motorhomes are built upon the stylish Ram ProMaster chassis with a 3.6-liter V6 gas engine to power your trips near and far. The rearview backup camera, the stability program, and the Uconnect 3 with navigation and a 5" touchscreen will make the drive just as sweet as the destination. Each model includes a 12V refrigerator, a two burner recessed propane stove with a flush cover and built-in igniter, and ample storage space for all your belongings. The instant hot water system with 36,000 BTU will provide hot water when you need it, and the 16,000 BTU propane automatic furnace will keep you warm if you travel year around.
Features
Standard Features (2021)
PLEASE NOTE: Features and Options separated by model below:
-------------------------------------------------------
ZION
Coach Features
- 110 V, 11,000 BTU roof mount A/C
- 13' power awning
- Fully enclosed with sink, shower and toilet
- 400 AMP lithium battery system
- Smoke, propane and CO
- 110 V / 30 AMP with detachable power cord
- Firefly coach control system monitors water, propane, battery charge levels, battery disconnect & generator hour meter
- Single folding mattress for sleeping across the front two captain seats (33" width x 70" length) (Optional)
- Propane automatic, 16,000 BTU Furnace
- Generator – underhood
- 110 V, 20 L/0.7 cu. ft., 700W Microwave
- Outdoor shower
- 12/110 V, 3,000 W Sine Wave - Includes power converter with charger
- 22 L / 5.9 U.S. gal. Propane Tank
- Forward facing 12 V rear power sofa with leatherette upholstery and three seat belts. Easily converts to twins or king size bed. (Optional)
- Side facing 12V rear power sofa with leatherette upholstery, convers to twins or king size bed
- 12 V, 5.0 cu. ft. Refrigerator
- Heavy duty, magnetic bug screen for rear and passenger sliding door
- Sewage disposal system
- 12 V macerator sewage pump and gravity dump
- 330 watt Solar Panels
- 110V flush mounted one burner Inductive Cooktop (Optional)
- Two burner recessed with flush cover and built-in igniter
- 24" Smart TV on rotating bracket
- Instant hot water system, 36,000 BTU on demand with bypass
Chassis Features
- Driver and passenger airbag
- 220 AMP alternator
- Anti-Lock brakes (ABS)
- 3.86 ratio rear axle
- 800 AMP battery
- Rearview backup camera
- Climate control
- 3.6L gas, V6 engine, 24 valve
- 280 HP/209 kW Power
- Power steps for front cab doors
- Uconnect 3 radio with Navigation and 5" touch screen, Bluetooth, AM/FM/SiriusXM/USB/aux, voice command and steering wheel control
- Class IV receiver with wiring for trailer lights
- Stability program: Stability control, rear park assist, rearview auto dim digital display mirror
- LT225/75R16E black wall tires
- 352 Nm/260 lb. -ft. torque @6400 RPM
- Automatic 6-speed 62 TE transmission
- 16" polished aluminum wheels
- Bright White exterior (Optional)
- Granite Metallic exterior - Optional
- Sandstone Pear exterior - Optional
- Silver Metallic exterior - Optional
- SumoSprings® are a patented suspension product designed to enhance load carrying ability, stabilize sway, and improve overall driver control and ride comfort. (Optional)
- Thule Accessory Pack: Package includes Thule bike rack, roof rack and telescopic ladder (Optional)
-------------------------------------------------
ZION SRT
Coach Features
- 110 V, 11,000 BTU roof mount A/C
- 11' power awning
- Fully enclosed with sink, shower and toilet
- 400 AMP lithium battery system
- Smoke, propane and CO
- 110 V / 30 AMP with detachable power cord
- Firefly coach control system monitors water, propane, battery charge levels, battery disconnect & generator hour meter
- Single folding mattress for sleeping across the front two captain seats (33" width x 70" length) (Optional)
- Propane automatic, 16,000 BTU Furnace
- Generator – underhood
- 110 V, 20 L/0.7 cu. ft., 700W Microwave
- Outdoor shower
- 12/110 V, 3,000 W Sine Wave - Includes power converter with charger
- 22 L / 5.9 U.S. gal. Propane Tank
- Forward facing 12 V rear power sofa with leatherette upholstery and three seat belts. Easily converts to twins or king size bed.
- 12 V, 5.0 cu. ft. Refrigerator
- Heavy duty, magnetic bug screen for rear and passenger sliding door
- Sewage disposal system
- 12 V macerator sewage pump and gravity dump
- 330 watt Solar Panels
- 110V flush mounted one burner Inductive Cooktop (Optional)
- Two burner recessed with flush cover and built-in igniter
- 24" Smart TV on rotating bracket
- Instant hot water system, 36,000 BTU on demand with bypass
Chassis Features
- Driver and passenger airbag
- 220 AMP alternator
- Anti-Lock brakes (ABS)
- 3.86 ratio rear axle
- 800 AMP battery
- Rearview backup camera
- Climate control
- 3.6L gas, V6 engine, 24 valve
- 280 HP/209 kW Power
- Power steps for front cab doors
- Uconnect 3 radio with Navigation and 5" touch screen, Bluetooth, AM/FM/Sirius/USB/aux, voice command and steering wheel control
- Sumo Springs (rear only) (Optional)
- Class IV receiver with wiring for trailer lights
- Stability program
- LT225/75R16E black wall tires
- 352 Nm/260 lb. -ft. torque @6400 RPM
- Automatic 6-speed 62 TE transmission
- 16" polished aluminum wheels
- Bright White exterior - Optional
- Granite Metallic exterior - Optional
- Sandstone Pear exterior - Optional
- Silver Metallic exterior - Optional
----------------------------------------------------
SS AGILE
Coach Features
- 110 V, 11,000 BTU roof mount A/C
- 9’ 10” power awning
- Fully enclosed with toilet and shower
- 400 AMP Lithium battery system
- Smoke, propane and CO
- 110 V/30 AMP with detachable power cord
- Firefly coach control system monitors water, propane, battery charge levels, battery disconnect & generator hour meter
- Propane automatic, 16,000 BTU Furnace
- 12 V, 280 AMP, 3,360 W Generator-underhood
- 110 V, 28 L/1.0 cu. ft., 1,800 W convection/1,000 W microwave
- Outdoor shower
- 60 L/16 U.S. gal., 70 lbs. Propane Tank
- 12 V/110 V compressor driven with thermostat, 3.1 cu. ft. Refrigerator
- Heavy duty, magnetic bug screen for rear and passenger sliding door
- 12 V macerator sewage pump
- Solar panels - 330 Watts
- Two burner, recessed with flush cover and built in igniter
- 24" Smart TV on rotating bracket
- Propane with bypass, 23L/6 U.S. gal 12,000 BTU Water Heater
- On-demand 12 V with water pump
- Single folding mattress for sleeping across the front two captain seats (22" width x 76" length) (Optional)
- 110V flush mounted one burner Inductive Cooktop (Optional)
Chassis Features
- Driver, passenger and thorax Airbags
- 14 V/200 AMP Alternator
- Anti-Lock Brakes (ABS)
- Axle-Rear 3.92 ratio
- 850 AMP Battery
- Camera – rearview backup
- Climate Control: Electronic with glove box cooler
- Cooling – transmission oil
- Cruise control
- 3.0L CRD V6 turbo diesel BlueTec? Engine
- Headlights – automatic on/off
- Heated front driver & passenger seats
- 190 HP/141 kW Power
- Power steps for front cab doors
- Mercedes Becker Map Pilot Navigation System with Bluetooth and on-dash keypad, audio 15 FM/AM, aux-in, USB
- Class III Receiver
- Stability program
- Theft deterrent system
- Tilt and telescopic steering wheel
- LT245/75R16E black wall Tires
- 440 Nm/325 lb.-ft. Torque
- Automatic 7-speed Transmission
- 16" polished aluminum Wheels
- E40 wire harness and 7 pin connector
- On-demand all-wheel drive and manually selectable reduction gear with expanded adaptive electronic aids (Optional)
- Veranda Blue Exterior (Optional)
- Selenite Grey Exterior (Optional)
- Grey White Exterior (Optional)
- Silver Ice Exterior (Optional)
----------------------------------------------------
PLAY
Coach Features
- 110 V, 11,000 BTU roof mount A/C
- 13' power awning
- Fully enclosed with toilet and shower
- 400 AMP Lithium battery system
- Smoke, propane and CO
- 110 V/30 AMP with detachable power cord
- Propane automatic, 16,000 BTU Furnace
- 110 V, 20 L/0.7 Cu.Ft., 700W Microwave Oven
- Water, propane, battery charge levels, battery disconnect & generator hour meter monitor panel
- Outdoor Shower
- 12/110 V, 3,000 W Sine Wave - Includes power converter with charger
- 22 L / 5.9 U.S. gal. Propane Tank
- 12 V, 5.0 cu. ft. Refrigerator
- Heavy duty, magnetic bug screen for rear and passenger sliding door
- 12 V macerator sewage pump and gravity dump
- Two burner recessed with flush cover and built-in igniter
- Instant hot water system, 36,000 BTU with bypass
- Single folding mattress for sleeping across the front two captain seats (22" width x 76" length) (Optional)
Chassis Features
- Driver and passenger Airbag
- 220 AMP Alternator
- Anti-Lock Brakes (ABS)
- 3.86 ratio Rear Axle
- 800 AMP Battery
- Camera – rearview backup
- Climate control
- Cruise control
- 3.6 L gas, V6, 24 valve Engine
- 280 HP/209 kW Power
- Uconnect 3 with Navigation and 5" touch screen, Bluetooth, AM/FM/SiriusXM/USB/aux, Voice command and steering wheel controls
- Class IV Receiver with wiring for trailer lights
- Stability program
- LT225/75R16E black wall Tires
- 352 Nm/260 lb.-ft. @6400 RPM Torque
- Automatic 6-speed 62 TE Transmission
- 16" polished aluminum Wheels
- Bright White exterior (Optional)
- Granite Metallic exterior (Optional)
- Sandstone Pearl exterior (Optional)
- Silver Metallic exterior (Optional)
-----------------------------------------------------
CHASE
Coach Features
- 110 V, 11,000 BTU roof mount A/C
- 13" power awning
- Fully enclosed with sink, shower and toilet
- 400 AMP lithium battery system
- Smoke, propane and CO
- 110 V / 30 AMP with detachable power cord
- Firefly coach control system monitors water, propane, battery charge levels, battery disconnect & generator hour meter
- Single folding mattress for sleeping across the front two captain seats (33" width x 70" length) (Optional)
- Propane automatic, 16,000 BTU Furnace
- Generator – underhood
- 110 V, 20 L/0.7 cu. ft., 700W Microwave Oven
- 12/110 V, 3,000 W Sine Wave - Includes power converter with charger
- 22 L / 5.9 U.S. gal. Propane Tank
- 12 V, 5.0 cu. ft. Refrigerator
- Heavy duty, magnetic bug screens for rear and passenger sliding door
- 12 V macerator sewage pump and gravity dump
- Solar panels
- 110V flush mounted one burner Inductive Cooktop (Optional)
- Two burner recessed with flush cover and built-in igniter
- 24" Smart TV on rotating bracket
- Instant hot water system, 36,000 BTU on demand with bypass
Chassis Features
- Driver and passenger Airbag
- 220 AMP Alternator
- Anti-Lock Brakes (ABS)
- 3.86 ratio Rear Axle
- 800 AMP Battery
- Camera – rearview backup
- Climate control
- Cruise control
- 3.6 L gas, V6, 24 valve Engine
- 280 HP/209 kW Power
- Power steps for front cab doors
- Uconnect 3 with Navigation and 5" touch screen, Bluetooth, AM/FM/SiriusXM/USB/aux, Voice command and steering wheel controls
- SumoSprings® are a patented suspension product designed to enhance load carrying ability, stabilize sway, and improve overall driver control and ride comfort (Optional)
- Class IV with wiring for trailer lights Receiver
- LT225/75R16E black wall Tires
- 352 Nm/260 lb.-ft. @6400 RPM Torque
- Thule accessory pack: Package includes Thule bike rack, roof rack and telescopic ladder (Optional)
- Automatic 6-speed 62 TE Transmission
- 16" polished aluminum Wheels
- Bright White exterior (Optional)
- Granite Metallic exterior (Optional)
- Sandstone Pearl exterior (Optional)
- Silver Metallic exterior (Optional)
------------------------------------------------------
ZION SLUMBER
Coach Features
- 110 V, 13,500 BTU roof mount A/C
- 11" power awning
- Fully enclosed with sink, shower and toilet
- 400 AMP lithium battery system
- Smoke, propane and CO
- 110 V / 30 AMP with detachable power cord
- Firefly coach control system monitors water, propane, battery charge levels, battery disconnect & generator hour meter
- Single folding mattress for sleeping across the front two captain seats (33" width x 70" length) (Optional)
- Propane automatic, 16,000 BTU Furnace
- Generator – underhood
- 110 V, 20 L/0.7 cu. ft., 700W Microwave Oven
- 12/110 V, 3,000 W Sine Wave - Includes power converter with charger
- 22 L / 5.9 U.S. gal. Propane Tank
- Forward facing 12 V rear power sofa with leatherette upholstery and three seat belts. Easily converts to twins or king size bed (Optional)
- Rear power sofa - side facing
- 12 V, 5.0 cu. ft. Refrigerator
- Heavy duty, magnetic bug screens for rear and passenger sliding door
- 12 V macerator sewage pump and gravity dump
- 110V flush mounted one burner Inductive Cooktop (Optional)
- Two burner recessed with flush cover and built-in igniter
- 24" Smart TV on rotating bracket
- Instant hot water system, 36,000 BTU on demand with bypass
Chassis Features
- Driver and passenger Airbag
- 220 AMP Alternator
- Anti-Lock Brakes (ABS)
- 3.86 ratio Rear Axle
- 800 AMP Battery
- Camera – rearview backup
- Climate control
- Cruise control
- 3.6 L gas, V6, 24 valve Engine
- 280 HP/209 kW Power
- Power steps for front cab doors
- Uconnect 3 with Navigation and 5" touch screen, Bluetooth, AM/FM/SiriusXM/USB/aux, Voice command and steering wheel controls
- SumoSprings® are a patented suspension product designed to enhance load carrying ability, stabilize sway, and improve overall driver control and ride comfort (Optional)
- Class IV with wiring for trailer lights Receiver
- LT225/75R16E black wall Tires
- 352 Nm/260 lb.-ft. @6400 RPM Torque
- Automatic 6-speed 62 TE Transmission
- 16" polished aluminum Wheels
- Bright White exterior (Optional)
- Granite Metallic exterior (Optional)
- Sandstone Pearl exterior (Optional)
- Silver Metallic exterior (Optional)
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change!
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Save your favorite RVs as you browse. Begin with this one!
Loading
Sky River RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @805-463-1838 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.
Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.
