Floorplan - 2017 Thor Motor Coach Four Winds Sprinter 24HL
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

- List Price: $79,998
-
Sleeps 5
-
2 Slides
-
Bunk Over CabRear Bedroom
-
25ft Long

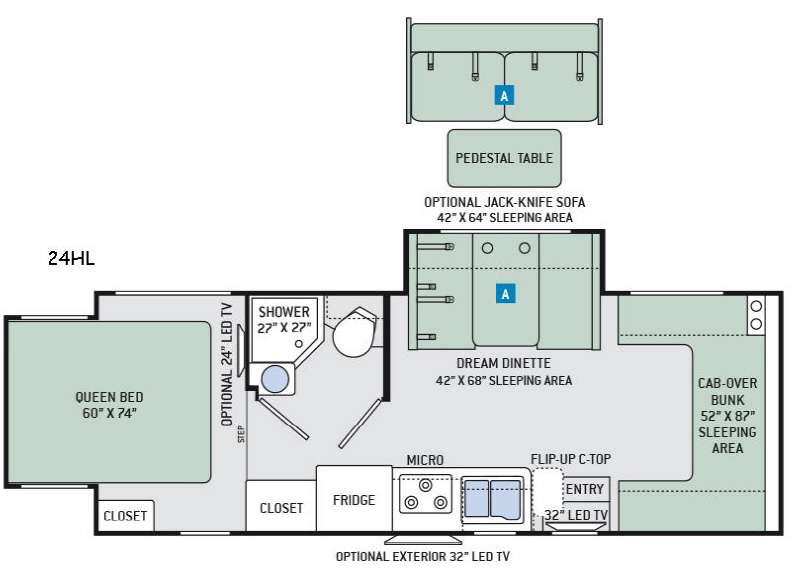

24HL Floorplan
Specifications
Sleeps | 5 | Slides | 2 |
Length | 24 ft 11 in | Ext Width | 7 ft 6 in |
Ext Height | 11 ft 7 in | Int Height | 7 ft |
Hitch Weight | 5000 lbs | GVWR | 11030 lbs |
Fresh Water Capacity | 30 gals | Grey Water Capacity | 24 gals |
Black Water Capacity | 25 gals | Furnace BTU | 30000 btu |
Fuel Type | Diesel | Miles | 26361 |
Engine | 3.0L V6 Blue TEC | Chassis | Mercedes Sprinter |
VIN | WDAPF4CC4G9701630 |
Description
Step inside model 24HL and notice the slide out Dream Dinette straight ahead. There is a 32" LED TV above the door opposite the dinette for perfect viewing. You will find two sets of seat belts for rear travelers here, and overhead storage for your things. At night if you need the extra sleeping space you can easily convert the dinette to comfortable sleeping for one adult or two children with a 42" x 68" sleeping area. There is also a cab-over bunk that features a 52" x 87" sleeping area as well.
To the left of the entry door enjoy cooking up your camp favorites using the three burner range and overhead microwave oven. There is a refrigerator, a double sink, and a flip-up counter-top to provide even more room for food prep, and ample storage in overhead cabinets, plus drawer space too.
Continue on toward the rear and find a bathroom along the road side that provides a 27" x 27" shower, toilet, and small sink. Opposite the bathroom next to the refrigerator is a closet for your clothing and/or linens.
Step up to the rear bedroom where you will find a slide out queen size bed including a closet along one side. There is a space where you can add an optional 24" LED TV if you like, plus so much more!
You can also opt. for a jack-knife sofa with almost the same amount of sleeping space as the Dream Dinette. This too features seat belts for two, plus a pedestal table. Or, maybe you would like to add the 32" exterior LED TV option, the choice is totally up to you!
Features
- Mercedes-Benz Sprinter diesel chassis
- Welded tubular steel floor system with floor decking
- Welded tubular aluminum roof and sidewall cage construction
- Vacu-bond laminated roof, walls and floor with block foam insulation
- One-piece fiberglass front cap
- Slick fiberglass exterior with standard graphics package
- Exterior graphics package
- HD-MAX exterior with graphics package (optional)
- MEGA Storage compartment
- Rotocast storage compartments
- Flush mount radius compartment doors
- Premium one-piece TPO roof
- Power patio awning with integrated LED lighting
- Crown roof
- Slide out room awnings
- Patio light
- Electric entry step
- Outside shower
- Exterior acrylic entry grab handle
- Entry door with deadbolt lock
- 5,000 lb. trailer hitch
- Black framed slider radius windows
- Deluxe heated / remote exterior mirrors
- Touchscreen AM/FM dash radio with CD/ DVD Player, Bluetooth & Back-up monitor
- Cruiser control
- Tilt steering wheel
- Power windows and door locks
- Map light
- Sun visors
- Windshield privacy curtain
- Drink holders
- Swivel, leatherette captain's chairs
- Three point seat belts for the driver and passenger
- Driver and passenger air bags
- Stainless steel wheel liners
- Keyless entry system
- Valve stem extensions on all wheels
- Rubber tread entry steps with lighted step well
- Residential vinyl flooring throughout
- Metal entry grab handle
- 84" interior ceiling height
- Raised panel cabinet doors and nickel finish hardware
- Smoke, LPG & carbon monoxide detectors
- LED lighting
- Hard vinyl ceiling
- Leatherette jack-knife sofa & removable pedestal table IPO dinette (optional)
- Cab-over bunk ladder
- Leatherette Dream Dinette booth
- Passenger seat belts in select areas
- Fire extinguisher
- Single child safety tether in dinette (optional)
- Ceiling ducted air conditioning system
- Full extension metal ball-bearing drawer guides
- Window privacy roller shades
- Fabric Dream Dinette booth
- 3 burner gas cook-top with oven (optional)
- Wallpaper kitchen boarder
- 3 burner gas cook-top
- Double bowl sink & faucet
- Convection microwave oven below cook-top
- Flip-up counter top extension
- 6 cu. ft. double door refrigerator
- Laminate counter-tops
- Kitchen waste basket
- Foot flush toilet
- Bedspread and pillow shams
- Denver Mattress queen size bed
- Skylight in shower
- Power bath vent
- 12-volt attic fan with cover in bedroom (optional)
- Shower with curtain
- 32" LED TV on manual swivel & DVD player
- Cable TV & satellite ready
- Digital TV antenna
- 32" LED TV in bedroom
- Exterior 32" LED TV on manual swivel
- 13,500 BTU front air conditioner
- Instant tankless water heater
- Onan RV QG 3600 LP generator
- Onan RV QD 3200 diesel generator (optional)
- Sewer hose storage area
- Second auxiliary house battery (optional)
- 30 amp shoreline power cord
- Battery disconnect switch
- Automatic shoreline to generator transfer switch
- Enclosed and heated holding tanks
- Black tank flush system
- Systems control center
