Floorplan - 2016 DRV Luxury Suites Mobile Suites Estates 39 RESB3
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
+69-
Sleeps 4
-
3 slides
-
Rear EntertainmentKitchen Island

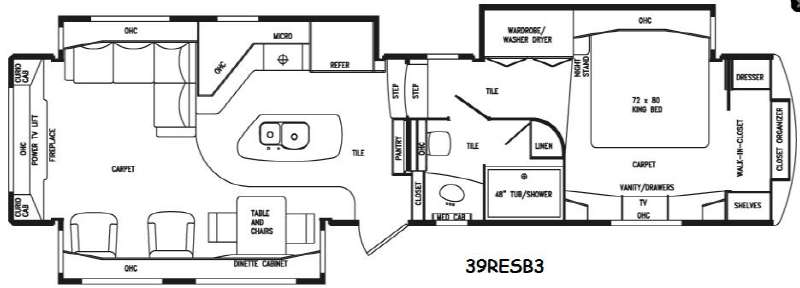

39 RESB3 Floorplan
Specifications
| Sleeps | 4 | Slides | 3 |
| Ext Width | 8 ft 5 in | Fresh Water Capacity | 100 gals |
| Grey Water Capacity | 75 gals | Black Water Capacity | 50 gals |
| Tire Size | 17.5" | Furnace BTU | 40000 btu |
| VIN | 5KEFA3926G1007859 |
Description
The Mobile Suites Estates 39 RESB3 has everything you need, and the space you want to enjoy spending time away from home.
There are dual opposing slides as you enter in the combined kitchen and living space along with a rear entertainment layout.
To the left of the entrance enjoy a dining table with two chairs, two recliners, and overhead cabinets the entire width of the slide. Along the rear wall find a power lift TV with side curio cabinets, overhead storage, and an optional fireplace.
The slide opposite the door offers an L-shaped sofa making the rear a cozy space to enjoy conversation or watching your favorite movie with family or friends.
The kitchen is straight ahead through the entry door and features a pantry along the interior wall, a convenient kitchen island with dual sinks, and a slide out refrigerator, three burner range, and counter space with overhead storage. There is also a microwave within the slide that also includes the L-shaped sofa.
Head up the steps just off the refrigerator slide to the front bed and bath. The bath offers a 48" tub/shower, a vanity with sink, toilet and linen cabinet.
Just outside the bathroom door find a slide out wardrobe with washer and dryer space, plus a king bed and nightstand further into the bedroom within the same slide. You will also find a vanity with drawers including a TV above opposite the bed, and overhead storage on either side. The front wall features a walk-in closet with shelves and a dresser, plus closet organizer, and so much more!
Features
- Goodyear® 17.5" H-Rated Re-Groovable Tires
- Heavy Duty Grease Bolt Shackles with Bronze Bushing
- Kodiak® Automotive Disc Brakes
- Trail Air® EquaFlex Rubber Equalizer Suspension
- Heavy Duty 8,000 Lb. Rated Axles
- Commercial Grade Oil Bath Hubs
- 15" Triple Stacked Box Tube Frame
- 101" Wide Body
- Industrial Hydraulic System for Jacks and Lower Level Slides
- Electric Bedroom Slide
- Slide Outs with Select Push Button Controls
- Pinless, Industrial Hydraulic Front Landing Jacks at 5 Degree Outboard Angle
- Rear Stabilizer Jacks
- 3" Thick Floor
- 14" O.C. Floor Aluminum Floor Joists
- Screwed and Glued Joist Construction
- 5/8" Tongue and Groove Plywood Flooring
- Four Season Perimeter Heat Ducting in Floor
- Residential Rated R29 Formaldehyde Free Wool Insulation
- 3 1/4" Thick Walls/Slides
- 16" O.C. Stud Spacing
- Screwed and Glued Aluminum Stud Construction
- 1/4" Monsanto® Fome-Cor Vapor Barrier (Eliminates Condensation)
- 1/4" Thick High Gloss Gelcoat Fiberglass with Wood Backer
- Residential Rated R16 Formaldehyde Free Wool Insulation
- 16" O.C. Rafter Spacing
- Residential Rated R25 Formaldehyde Free Wool Insulation
- 1/2" Plywood Roof Overlayment
- Fully Molded 1-Piece Fiberglass Roof
- Soft-Touch Vinyl Ceiling, Including Interior Slide-Out Ceilings
- Subzero Thermo-Pack High Density Wool Insulation
- High Gloss Oyster Colored Gelcoat Fiberglass
- High Gloss Gelcoat Fiberglass Molded Caps
- High Gloss Gelcoat Fiberglass Molded Fender Skirts
- Custom Painted Exterior with Clear Coat
- Frameless Tinted Safety Glass Windows
- Four Exterior Security Lights
- Back-Up Lights with 50 Watt Halogen Lights
- Commercial LED Exterior Clearance Lights
- Amber LED Turn Signal
- Mid-Ship Turn Signal
- LED Docking Lights
- 78" Entry Door
- Removable Storm Door Panels
- Keyless Entry Door
- Slam Door Compartment Latches
- Extra Thick Compartment Doors with Gas Struts
- Easy Access Light Switches for Basement
- Washable Storage Compartment Liner
- Lend-a-Hand Exterior Grab Handle
- Power Awning with Aluminum Weather Shield
- Water Pump Switch at Outside Hookup Center
- Coach-Net® Emergency Road Side Assistance
- 50 Amp Service with Detachable Cord
- 80 Amp 12 VDC Converter
- 100 Gal. Fresh Water Tank
- 75 Gal. Grey Water Tank with Power Flush
- 50 Gal. Black Water Tank with Power Flush
- Residential Pex Water Lines
- Exclusive Copper Water Manifold with Individual Shut-Off Valves
- Whole House Water Filtration System
- Single Lever Water Heater Bypass
- Single Lever Water Pump Bypass
- Slide Out Propane Tray with Dual 40 Lb. Tanks
- 12VDC Battery on Pull Out Tray
- 12 Gal. Gas/Electric DSI Water Heater
- 40,000 BTU Furnace
- Residential 5 Duct Heating System with 6" Ducting
- Forced Heat Ducting to Tanks/Water System
- Fully Ducted A/C System with Cold Air Return
- 15,000 BTU Low-Profile Main A/C
- Wired and Ducted Bedroom A/C with Cold Air Return
- Solar Prep
- HD Roof Satellite Prep for Dual DVR Receivers
- HD Ground Satellite and Cable Prep
- Power TV Antenna
- Hand Laid Vinyl Wood Plank Flooring
- Residential Rebond Carpet Pad
- Plush Residential High Durability Carpet
- Mocha Cherry/Urban Glaze Hardwood Cabinetry
- Hardwood Solid Cherry Fascia Trim Around Slide Outs
- Hardwood Solid Cherry Cabinet Stiles (Pocket Drilled/Screwed)
- Concealed Cabinet Door Hinges
- Full Face Raised Panel Cabinetry
- Soft-Close Full Extension Metal Drawer Guides
- LED Interior Ceiling Lighting on Dimmer Switches
- Decorative Wall Clock
- Utility Closet with Coat Storage and Centralized Control Station
- Interior Ceiling Fan
- Decorative 110V Light Sconces and Overhead Dinette Light
- Custom Hardwood Dinette Buffet with Storage and Pull-Out Table
- (2) Hardwood Dinette Chairs with Fabric Accent
- Crown Molding Throughout
- Manual Day/Night Roller Shades
- Power TV Lift with Extra Window
- HD Wiring Throughout
- Lane® Furniture
- Lane® Hide-a-Bed Sofa (Rear Sofa Models)
- Lane® Deluxe Air Bed Sofa (Rear Entertainment Models)
- 20 Cu. Ft. Residential Stainless Steel French Door Refrigerator
- Stainless Steel GE Profile Convection/Microwave
- Stainless Steel Residential Dishwasher
- Garbage Disposal
- Pull-Out 13 Gal. Garbage Can
- Double Deep Bowl Stainless Steel Sink
- Residential Goose Neck Faucet with Pull-Out Sprayer
- Custom Made Ceramic Backsplash
- Residential Quartz Countertops
- Sealed 3 Burner Cooktop with Hinged Power Countertop Lift
- Custom Appliance Garage with Pull-Out Tray (Most Models)
- Hardwood Raised Panel Light Box with 110V Over Island Lighting
- Lighted Pantries and Kitchen/Bathroom Toe Kicks
- Hardwood Steps
- No Carpet in Hallway
- Washer/Dryer Prep
- Heat and A/C Ducting in Bathroom
- Fantastic Fan Create-a-Breeze in Bathroom
- 48" 1-Piece Fiberglass Shower with Molded Seat
- Sky-Light Over Shower
- Porcelain Toilet with Water Saver Spray
- Custom Walk-in Front Closet with Built in Dresser
- Real Cedar Lined Front Closet
- Custom Hardwood Wardrobe Doors
- King Bed Suite 72" x 80" with Innerspring Mattress
- Queen Bed Suite (Standard Estates 39 RBSB4 and Cincinnati)
- Full Storage Under Bed Base
- Separate Bedroom Ceiling Speakers
- Over the Bed Reading Lights
- Mocha Cherry / Urban Glaze
- Kona Ice Quartz
- Lane® Sofa
- Lane® Theatre Seating (Side Entertainment Models)
- Lane® Recliners (Rear Entertainment Models)
- Built-in Fireplace
- Deluxe Day/Night Roller Shades (Standard Estates)
- 46" Samsung® LED HDTV Home Theatre Package
- 60" Samsung® LED HDTV (Rear Entertainment Models Only)
- 32" Samsung® LED HDTV Outdoor Entertainment (Standard Estates)
- Winegard® Trav’ler HD Auto Satellite
- WiFi Ranger Wireless Router
- 3 Burner Range/Oven IPO 3 Burner Cooktop
- Magnum 1,000 Watt Inverter for Residential Refrigerator Only
- Built in Front Wardrobe Safe with Keyless Entry
- Queen Bed Suite
- Linen Package
- Mocha Cherry Folding Chair
- Sleep Number® Bed by Select Comfort
- Vanity Slide in Front Bedroom (Standard on Some Models)
- 13.5 BTU Ducted Lo/Pro AC (Bedroom)
- 15 BTU Ducted Lo/Pro AC (Bedroom)
- Heat Pump
- Fantastic Fan with Switch Control – Bedroom
- Fantastic Fan with Rain Sensor and Remote – Kitchen
- Splendide® Front Load 2 Piece
- Splendide® XC 2,100 Combo
- Central Vacuum
- Generator Prep-Auto Change Over
- Onan® 5,500 Marquis Gold Generator with Prep
- Dual 6VDC H.D. Battery System
- Magnum 2,800 Watt Inverter with Four 6V Batteries
- Power Management System
- Surge Protector with Voltage Protection and Remote Display
- Heat pads on all Tanks with Elbow Heater on Drain Pipe
- Canadian All Weather Package (Twin 30BTU Furnaces/Heat pads)
- Goodyear® 17.5" Spare Tire and Carrier
- Commercial Six Point Pinless Hydraulic Leveling System
- One Touch Auto leveling
- MOR/ryde® I.S. Suspension and MOR/ryde® Pin Box
- Trail-Air® C/P Suspension/Tri-Glide Pin Box
- Wireless Tire Pressure and Heat Sensor Monitoring System
- 2" Receiver Boat Hitch with 7-Way Flat Plug
- Power 4-Step Entry (Exclusive)
- Manual 4-Step Entry
- Power Cord Reel
- Slide Toppers
- Dinette Patio Awning with Weathershield
- Slide Out Storage Tray (36" x 90")
- Audible Wireless Backup Camera System
- Detachable Ladder Only
- Thermopane Windows
- RVIA
- CSA
- Caramel Swirl
- Vegas Nights
- Winter Wind
