The Fuzion Impact Edition toy hauler travel trailers and toy hauler fifth wheels by Keystone offer a lighter, easy-to-tow toy hauler that is focused on value and fun, allowing you to get outdoors with your toys. The Fuzion Impact Edition is tougher when you need it, and provides technology that transforms and offers unexpected conveniences.



Each is built with a frame-welded 5k Interlock tie-down system, 7,000 lb. flipped Dexter axles with electric self-adjusting brakes, a fully enclosed, 30 gallon fuel pump station with touch pad controls to keep the fun going, G-rated tires and tighter door, window and slide seals with CNC, precision-routed sidewalls. And the SolarFlex 200 is standard. The interior has a fiberglass backed linoleum floor with no carpet, extra tall slide height for a spacious interior, hardwood cabinetry for durability and style, plus so much more depending which model you choose.



Be honest with yourself, you want a good price, robust construction and an easy way to tow your toys, choose a Keystone Fuzion Impact Edition toy hauler travel trailer or toy hauler fifth wheel today!

  • Fuzion Impact Edition 359

    Fuzion Impact Edition 359 Floorplan Image

    Take a Virtual Tour

    Keystone Fuzion Impact Edition toy hauler 359 highlights: Bath and a Half Dual ... more about Fuzion Impact Edition 359

    Specifications

    Sleeps 8
    Slides 2
    Length 39 ft
    Ext Height 13 ft 1 in
    Interior Color Brindle, Glacier
    Hitch Weight 2880 lbs
    Dry Weight 12463 lbs
    Cargo Weight 4417 lbs
    Fresh Water Capacity 94 gals
    Grey Water Capacity 88 gals
    Black Water Capacity 88 gals
    Tire Size ST235/80R16G
    Furnace BTU 40000 btu
    Fuel Capacity 30 gals
    Number Of Bunks 1
    Available Beds Queen
    Refrigerator Type Gas/Electric
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 7000 lbs
    Garage Size 10 ft
    LP Tank Capacity 30 lbs
    Water Heater Type On Demand
    TV Info LR LED TV
    Awning Info 20' Electric with Adjustable Arms, Auto Dump, LED Lights
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Neo-Angled
    Electrical Service 50 amp

    Similar Floorplans

  • Fuzion Impact Edition 343

    Fuzion Impact Edition 343 Floorplan Image

    Take a Virtual Tour

    Keystone Fuzion Impact Edition toy hauler 343 highlights: Kitchen Island Three ... more about Fuzion Impact Edition 343

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 9
    Slides 3
    Length 39 ft
    Ext Height 13 ft 1 in
    Interior Color Brindle, Glacier
    Hitch Weight 2905 lbs
    Dry Weight 12316 lbs
    Cargo Weight 4584 lbs
    Fresh Water Capacity 94 gals
    Grey Water Capacity 86 gals
    Black Water Capacity 44 gals
    Tire Size ST235/80R16G
    Furnace BTU 35000 btu
    Fuel Capacity 30 gals
    Number Of Bunks 1
    Available Beds Queen
    Refrigerator Type Gas/Electric
    Refrigerator Size 12 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 7000 lbs
    Garage Size 13 ft
    LP Tank Capacity 30 lbs
    Water Heater Type On Demand
    TV Info LR LED TV
    Awning Info 13' Electric with Adjustable Arms, Auto Dump, LED Lights
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Neo-Angled
    Electrical Service 50 amp

    Similar Floorplans

  • Fuzion Impact Edition 367

    Fuzion Impact Edition 367 Floorplan Image

    Take a Virtual Tour

    Keystone Fuzion Impact Edition toy hauler 367 highlights: Full and Half Bath ... more about Fuzion Impact Edition 367

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 9
    Slides 3
    Length 40 ft 2 in
    Ext Height 13 ft 3 in
    Interior Color Brindle, Glacier
    Hitch Weight 2950 lbs
    Dry Weight 12913 lbs
    Cargo Weight 4037 lbs
    Fresh Water Capacity 94 gals
    Grey Water Capacity 88 gals
    Black Water Capacity 88 gals
    Tire Size ST235/80R16G
    Furnace BTU 40000 btu
    Fuel Capacity 30 gals
    Number Of Bunks 1
    Available Beds Queen
    Refrigerator Type Gas/Electric
    Refrigerator Size 12 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 7000 lbs
    Garage Size 14 ft
    LP Tank Capacity 30 lbs
    Water Heater Type On Demand
    TV Info LR LED TV
    Awning Info 13' Electric with Adjustable Arms, Auto Dump, LED Light Strip
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Fuzion Impact Edition 415

    Fuzion Impact Edition 415 Floorplan Image

    Take a Virtual Tour

    Keystone Fuzion Impact Edition toy hauler 415 highlights: Triple Axles U-Shaped ... more about Fuzion Impact Edition 415

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 9
    Slides 2
    Length 44 ft
    Ext Height 13 ft 3 in
    Interior Color Brindle, Glacier
    Hitch Weight 3155 lbs
    Dry Weight 13888 lbs
    Cargo Weight 5112 lbs
    Fresh Water Capacity 94 gals
    Grey Water Capacity 88 gals
    Black Water Capacity 88 gals
    Tire Size ST235/80R16F
    Furnace BTU 40000 btu
    Fuel Capacity 30 gals
    Number Of Bunks 1
    Available Beds Queen
    Refrigerator Type Gas/Electric
    Refrigerator Size 12 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 7000 lbs
    Garage Size 15 ft
    LP Tank Capacity 30 lbs
    Water Heater Type On Demand
    TV Info LR LED TV
    Awning Info 20' Electric with Adjustable Arms, Auto Dump, LED Lights
    Axle Count 3
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Neo-Angled
    Electrical Service 50 amp

    Similar Floorplans

Fuzion Impact Edition Features:

Standard Features (2022)



Exterior

  • 10"/12" I-beams w/ frame welded tie downs and 100" wide body (Fifth Wheels) (Travel Trailers: Select Models)
  • 8" I-beams and 100" wide body (Travel Trailers)
  • Rota-Flex™ pin box (Fifth Wheels)
  • Aerodynamic fiberglass front cap w/ lights and improved turning radius (Fifth Wheels)
  • Aluminum constructed laminated fiberglass sidewalls
  • Large panoramic tinted safety glass windows w/ black framing
  • Dual-pane frameless windows (Fifth Wheels: Optional; Travel Trailers: Select Models)
  • Diamond plate rock guard on cap (Travel Trailers)
  • Fiberglass front cap w/ LED lights (Fifth Wheels)
  • 3/4 front cap (Travel Trailers: Select Models)
  • Fully walkable roof (Fifth Wheels)
  • Collapsible roof ladder (Fifth Wheels)
  • Norco cable driven slide system w/ manual backup
  • One-piece polypropylene heated underbelly (enclosed tanks and valves)
  • 7,000 lb. flipped Dexter® E-Z Lube axles w/ 12" x 2" brakes on every wheel (Fifth Wheels; Travel Trailers: Select Models)
  • Leaf spring suspension system
  • 16" aluminum wheels w/ G-rated tires (Fifth Wheels: Travel Trailers: Select Models)
  • 15" aluminum wheels w/ E-rated tires (Travel Trailers: Select Models)
  • Electric front and rear stabilizer jacks
  • 6 PT EQ Smart Leveling (Fifth Wheels: Optional)
  • 30” wide entry doors
  • LCI® SolidStep® w/ extra-wide first step (Fifth Wheels)
  • Lighted pass-through storage
  • Back-up camera/prep (Fifth Wheels)
  • Battery disconnect
  • Exterior convenience center (Fifth Wheels)
  • Generator prep
  • Onan 5500 watt gasoline generator (Fifth Wheels: Optional) (Travel Trailers: Select Models)
  • Onan 4000 watt gasoline generator (Travel Trailers: Select Models)
  • 94 gal. fresh, 88 gal. gray, 44/88 gal. black (Fifth Wheels)
  • 100 gal. fresh, 60 gal. gray, 30 gal. black (Travel Trailers: Select Models)
  • 60 gal. fresh, 60 gal. gray, 30 gal. black (Travel Trailers: Select Models)
  • Fuel station w/ 12V pump, 30-gal. tank, and static line
  • 50-AMP service w/ detachable marine power cord (Fifth Wheels) (Travel Trailers: Select Models)
  • 30-AMP service w/ detachable marine power cord (Travel Trailers: Select Models)
  • Exterior shower w/ hot and cold water
  • Electric awning w/adjustable arms, auto dump, and LED light strip

Interior

  • Fiberglass backed linoleum floor (carpet-free)
  • Extra tall slide height
  • Night shades
  • Designer upholstered window valances
  • Hardwood cabinetry
  • Residential-style furniture w/ heated seats, LED lights, massage, and 110v/USB ports (Fifth Wheels) (Travel Trailers: Select Models)
  • 5000 BTU electric fireplace (Select Models)
  • King bed suite w/ storage (Fifth Wheels: Optional)
  • 3-seat sofa w/ LED, heat, and massage IPO booth dinette (Travel Trailers: Select Models)

Keystone Exclusives

  • 3-year limited structural warranty
  • 1-year limited base warranty
  • Color-coded unified wiring standard
  • 4G LTE and Wi-Fi prep
  • Tuf-Lok™ thermoplastic duct joiners
  • KeyTV™ multisource signal controller
  • In-floor heating ducts
  • Tru-fit™ slide construction

Kitchen Features

  • Full-extension ball bearing drawer guides
  • Pressed countetops
  • Deep, single basin, stainless steel sink
  • High-rise faucet w/ pull-out sprayer
  • Swivel bar stools (Select Models)
  • Booth dinette (Travel Trailers: Select Models)

Appliances & Utilities

  • (2) 30 lb. LP tanks
  • Omni Chill™ 3/4 ton high efficiency A/C
  • 2nd ¾ ton A/C (Fifth Wheels: Optional; Travel Trailers: Select Models)
  • 35K BTU furnace
  • On Demand Hot Water Heater (Fifth Wheels)
  • 6-gal. gas/electric DSI water heater (Travel Trailers)
  • LED TV and Bluetooth® CD/DVD player w/ MP3 connection, 2 interior, and 2 exterior speakers
  • 8 cu. ft. gas/electric refrigerator (Travel Trailers) (Fifth Wheels: Select Models)
  • 12 cu. ft. gas/electric refrigerator (Fifth Wheels: Select Models)
  • Microwave oven
  • Furrion® 3-burner gas range and stove w/ low profile hood vent
  • Washer/dryer prep (Fifth Wheels)
  • Recessed LED puck lighting throughout

Bedroom Features

  • 60" x 80" residential queen-sized bed
  • King bed suite (Fifth Wheels: Optional)
  • Reading Lights
  • Bedside outlets/USB
  • Under bed storage
  • TV hook-up
  • TV prep

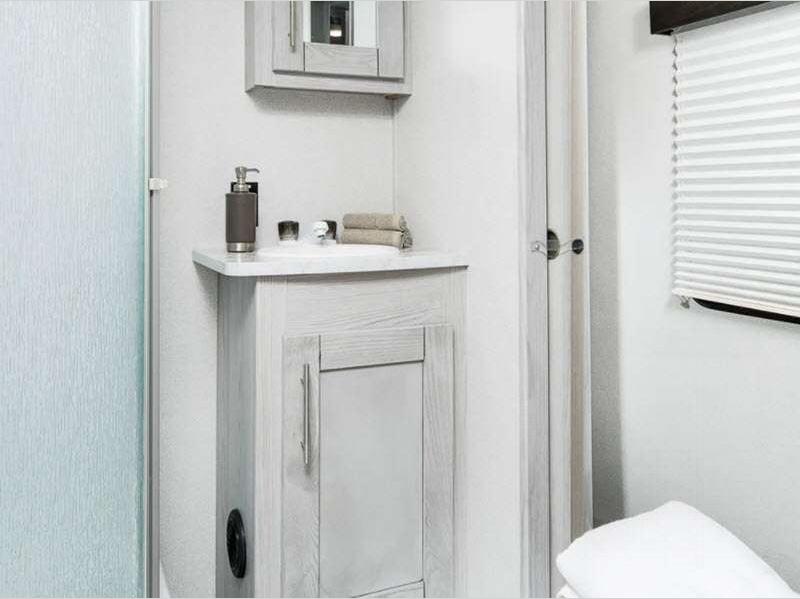

Bathroom Features

  • Pressed countertops
  • Oversized shower w/ skylight
  • Porcelain base foot flush toilet

Safety

  • Breakaway switch and safety chains
  • GFI receptacles
  • Carbon monoxide detector
  • Smoke detector
  • Propane gas leak detector
  • Fire extinguisher

Garage

  • Gas/oil resistant tuff-ply flooring
  • 5k interlock system w/ frame welded tie-downs
  • 8’ ramp door
  • Half bath (Fifth Wheels: Select Models)
  • Ducted A/C, ducted heat
  • (2) metal ram air vents
  • Dual electric beds w/ collapsible roll-over sofa (Fifth Wheels: Optional; Travel Trailers: Select Models)
  • Sliding rear patio door (Fifth Wheels: Optional; Travel Trailers: Select Models)

SolarFlex™

  • SolarFlex™ 200
  • SolarFlex™ 400i (Optional)
  • SolarFlex™ 600i-L (Fifth Wheels: Optional)
  • (2) 100 AMP Hour Dragonfly Lithium Batteries (Optional)

Individual Options

  • Rear patio package (Travel Trailers: Optional)

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.
